CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder

Πιστοποίηση
Κίνα Suzhou Best Bowl Feeder Automation Equipment Co., Ltd. Πιστοποιήσεις
Κίνα Suzhou Best Bowl Feeder Automation Equipment Co., Ltd. Πιστοποιήσεις
Είμαι Online Chat Now

CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder

CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder
CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder

Μεγάλες Εικόνας :  CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: BBF
Πιστοποίηση: CE, ROHS, ISO9001
Αριθμό μοντέλου: Δ314
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: Διαπραγμάτευση
Τιμή: Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Ξύλινη θήκη συσκευασίας
Χρόνος παράδοσης: 3 Εβδομάδες εργασίας
Όροι πληρωμής: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Δυνατότητα προσφοράς: 300 τεμάχια το μήνα

CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder

περιγραφή
Όνομα προϊόντος: Δονητικός τροφοδότης μπολ Υλικό: Ατσάλι SUS304, αλουμίνιο AL7075
Εξουσία: 200W, 500W, 1000W, 1500W, 2000W Δυναμικό: 220V 50Hz/110V 60Hz
Εγγύηση: 2 Χρόνια Φινίρισμα: Στίλβωση ή επίστρωση PU
πακέτο: Ξύλινη θήκη συσκευασίας Παρέχεται εξυπηρέτηση μετά την πώληση: Ανταλλακτικά και υποστήριξη τεχνολογίας

CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder


1 . Descriptions:


Vibratory bowl feeders play a crucial role in automated production. They utilize electromagnetic force to generate vibration, which is then converted into mechanical vibration. Under the action of this mechanical vibration, materials are conveyed along a preset track smoothly and efficiently.


There is a magnetic coil installed under the bowl of a vibratory bowl feeder, typically equipped with 1 to 6 electromagnets. This device, which converts electromagnetic vibration into mechanical vibration, ensures the stable operation of material conveyance. Combined with the specially designed track on the bowl, materials can be accurately conveyed to the production line in the specified state and direction, meeting the requirements of subsequent production processes.


Using vibratory bowl feeders in production not only greatly improves production efficiency but also eliminates the possibility of errors caused by manual operation, ensuring the stability and consistency of production.


2 . Specifications:


Product name Vibratory Bowl Feeder
Material Aluminum(AL7075), Stainless Steel(SUS304) or Based on Customers' Requirements
Controller CUH,Sanki,Sinfonia,REO,Afag
Voltage 220V 50HZ/110V 60Hz or Based on Customers' Requirements
Power 300W/500W/1000W/1500W/2000W

Color

Green or Based on Customers' Requirement
After-sales Service Spare Parts and Technology Support
Warranty 2 Years
Certification CE, ISO9001, ROHS
Lead Time 3 Working Weeks


3 . Upgrade of Vibratory Bowl Feeders:


The material used to manufacture a vibratory bowl feeder largely determines its service life. In the early days, vibratory bowl feeders were often made of iron or aluminum. After a period of use, rust and wear would become visible on the surface of the feeder, affecting its performance and lifespan.


Nowadays, vibratory bowl feeders are basically made of stainless steel. Stainless steel is not only wear-resistant and rust-proof but also easy to clean, making it an ideal material for modern vibratory bowl feeders.


The use of stainless steel greatly extends the service life of vibratory bowl feeders. When conveying products such as food or medicine, stainless steel will not contaminate the products, meeting the strict hygiene requirements of these industries. Additionally, spraying a layer of coating on the surface of the stainless steel vibratory bowl feeder can better protect its side walls and tracks, further enhancing its durability.


Undeniably, the cost of producing vibratory bowl feeders using stainless steel is higher. However, its longer service life reduces the number of maintenance shutdowns and related costs. From an overall perspective, using stainless steel is more cost-effective in the long run.


4 . More Pictures:

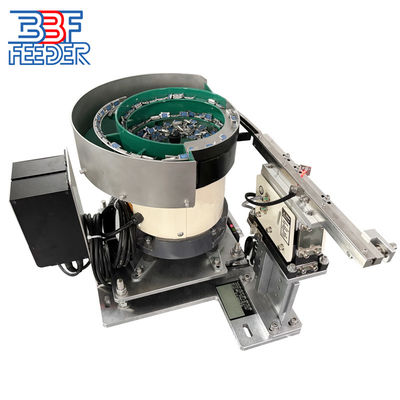

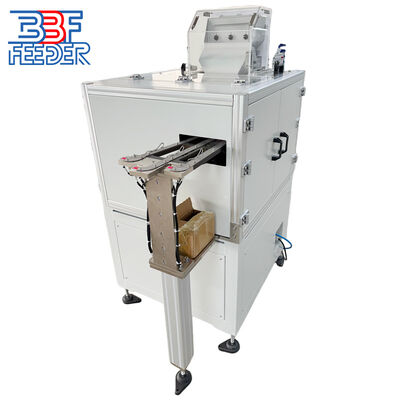

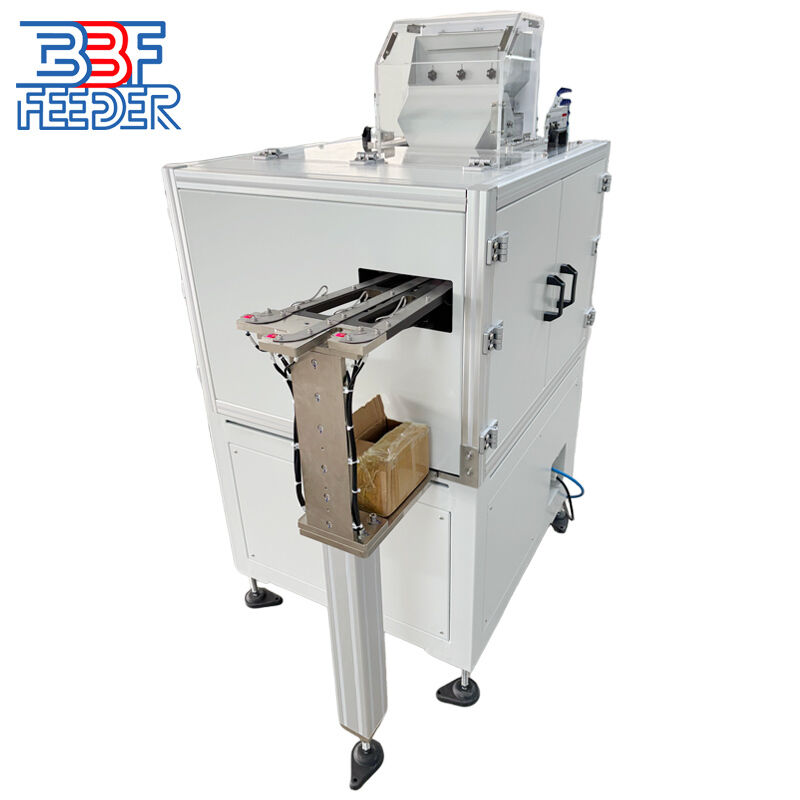

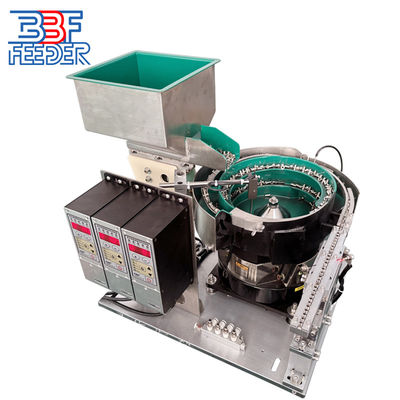

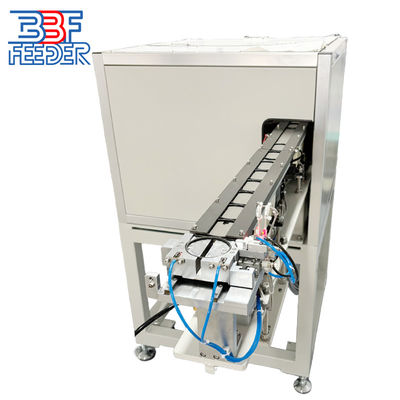

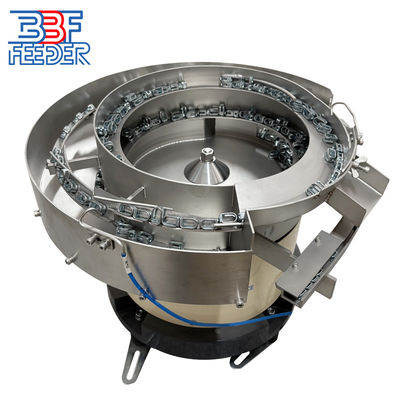

CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder  0

CE Vibratory Cap Bowl Feeder High Efficiency Automatic Small Part Feeder  1
